HEAVY-DUTY 4×4 ROUGH-TERRAIN FORKLIFTS • CUSTOM SOLUTIONS FOR SPECIALIZED APPLICATIONS

4×4 Rough Terrain Forklifts

Heavy-duty solutions for challenging environments

5-10 Ton Capacity
All-Terrain Performance
EURO III Compliant

Our Product Range

SINOFORKLIFT is the first company in China to launch, develop, and mass-produce 8–10 T 4×4 rough-terrain heavy forklifts, setting the industry standard for heavy-duty material handling equipment.

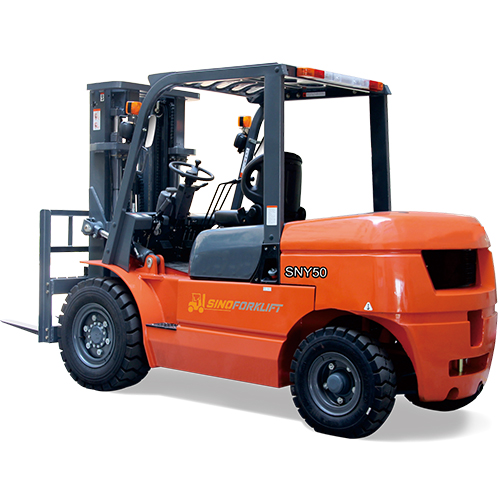

5T 4WD Rough Terrain Forklift
SNY50
5000T

5T 4WD Rough Terrain Forklift

Heavy-duty 5-ton rough terrain forklift designed for versatile outdoor applications

5000kg
Rated Load
500mm
Load Center
2100mm
Wheelbase
4×4 All-Wheel Drive
5-Ton Lifting Capacity
Pneumatic Tires
EURO IV Emission
3000mm Lift Height
8T 4WD Rough Terrain Forklift
SNY80
8000T

8T 4WD Rough Terrain Forklift

Heavy-duty 8-ton rough terrain forklift designed for challenging outdoor applications

8000kg
Rated Load
600mm
Load Center
2800mm
Wheelbase
4×4 All-Wheel Drive
8-Ton Lifting Capacity
Pneumatic Tires
EURO III Emission
4000mm Mast Height
10T 4WD Rough Terrain Forklift
SNY100
10000T

10T 4WD Rough Terrain Forklift

Heavy-duty 10-ton rough terrain forklift for extreme lifting applications

10000kg
Rated Load
600mm
Load Center
2800mm
Wheelbase
4×4 All-Wheel Drive
10-Ton Lifting Capacity
Pneumatic Tires
EURO III Emission
4000mm Mast Height

Technical Specifications

Comprehensive technical details for our 4×4 rough terrain forklifts

5T 4WD Rough Terrain Forklift

Heavy-duty 5-ton rough terrain forklift designed for versatile outdoor applications

Rated load
5000kg
Load center
500mm
Service weight
6650kg
Wheel base
2100mm
Tyre type
Pneumatic tyre
Front wheel
300-15-18PR
Rear wheel
7.00-12-12PR
Front tread
1180mm
Rear tread
1190mm
Mast tilting angle F/R
6/12°/β(°)
Lift height
3000mm
Mast lowered height
2270mm
Free lift height
150mm
Mast extended height
4165mm
Length to face of fork
3280mm
Overall width
1460mm
Fork dimension
1070 × 150 × 50mm
Overhead guard height
2340mm
Front overhang
575mm
Rear overhang
600mm
Turning radius (outside)
2930mm
Ground clearance
170mm
Min intersecting aisle
2920mm
Min right angle stacking aisle width
4780mm
Right angle stack aisle
3900mm
Max travel speed (full/no load)
19/20km/h
Lifting speed (full/no load)
380/430mm/s
Lowering speed (full/no load)
<600/-300mm/s
Grade ability (loaded)
20%
Engine model
XinChai 4D35Y41
Emission
EURO IV/BIIIV
Engine power
55.8/2200kW/r/min
Max torque
320/1600N·m/r/min
Cylinder No.
4
Bore × Stroke
98×115mm
Displacement
3.47L

8T 4WD Rough Terrain Forklift

Heavy-duty 8-ton rough terrain forklift designed for challenging outdoor applications

Rated load
8000kg
Load center
600mm
Wheel base
2800mm
Tyre type
Pneumatic tyre
Front wheel
17.5-25-36PR
Rear wheel
12.5/80--18-14PR
Mast tilting angle F/R
10/15°/β(°)
Mast closed height
4000mm
Length without fork
4380mm
Width
2580mm
Fork dimension
1520 × 160 × 80mm
Fork carrier width
1900mm
Ground clearance, under mast
350mm
Ground clearance, Chassis
380mm
Turning radius
5800mm
Grade ability (loaded)
36%
Service brake
Wet brake
Parking brake
Mechanical
Engine manufacturer
QSB4.5-C130
Emission
EURO III
Engine power
97/2200kW/r/min
Max torque
600@1500N·m/r/min
Cylinder No.
4/4500(-)/cm³
Battery Voltage/A
2-12/90V/Ah
Transmission gear
2F/2R

10T 4WD Rough Terrain Forklift

Heavy-duty 10-ton rough terrain forklift for extreme lifting applications

Rated load
10000kg
Load center
600mm
Wheel base
2800mm
Tyre type
Pneumatic tyre
Front wheel
17.5-25-36PR
Rear wheel
12.5/80--18-14PR
Mast tilting angle F/R
10/15°/β(°)
Mast closed height
4000mm
Length without fork
4800mm
Width
2580mm
Fork dimension
1520 × 160 × 80mm
Fork carrier width
2100mm
Ground clearance, under mast
350mm
Ground clearance, Chassis
380mm
Turning radius
5800mm
Grade ability (loaded)
36%
Service brake
Wet brake
Parking brake
Mechanical
Engine manufacturer
QSB4.5-C130
Emission
EURO III
Engine power
97/2200kW/r/min
Max torque
600@1500N·m/r/min
Cylinder No.
4/4500(-)/cm³
Battery Voltage/A
2-12/90V/Ah
Transmission gear
2F/2R

Ready to Experience Heavy-Duty Performance?

Contact our team to learn more about our 4×4 rough terrain forklifts and find the perfect solution for your application.
